Brand Name : | CAMEL SECURITY |
Model Number : | ANT850-32NT/ANT886-32NT |
Model: ANT850-32NT / ANT886-32NT
Model | ANT850-32NT/ANT886-32NT |
Size(mm) | 86L*50W*20H(mm) / 86L*86W*20H(mm) |
Weight(KG) | 0.11KG / 0.14KG |
Power Supply | DC12-24V |
Output Contact | NO/NC/COM |
Sensitive Distance | 5-20cm |
Time Delay | 0-30s delay adjustment |
Waterproof | IP68(Customized) |
Material | 4mm thick aluminum alloy panel |
LED Indicator | Standby blue, Response green |
Panel logo | Customizable |
Mechanical Life | 500,000 Tested aging test qualifified |
Operating Temp | -20℃~+55℃(-4-131F) |
Operating humidity | 0-95%(RH) |
Package Quantity | 1 PCS/box, 100 PCS/case. |
Features:

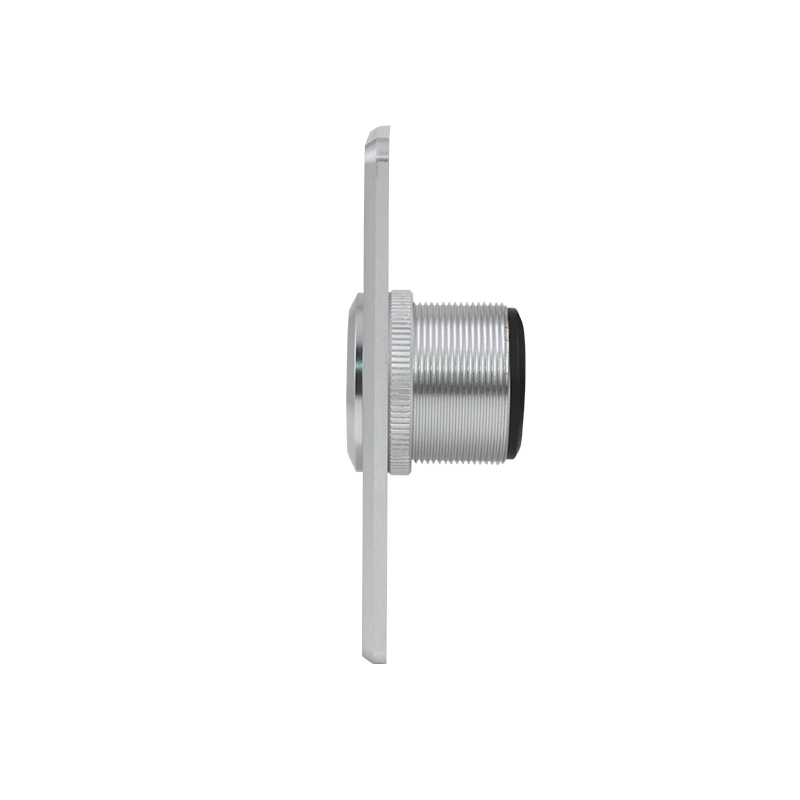

Model | ANT850-32NT | ANT886-32NT | Side | ||
Size | 115*40mm | 115*70mm | |||

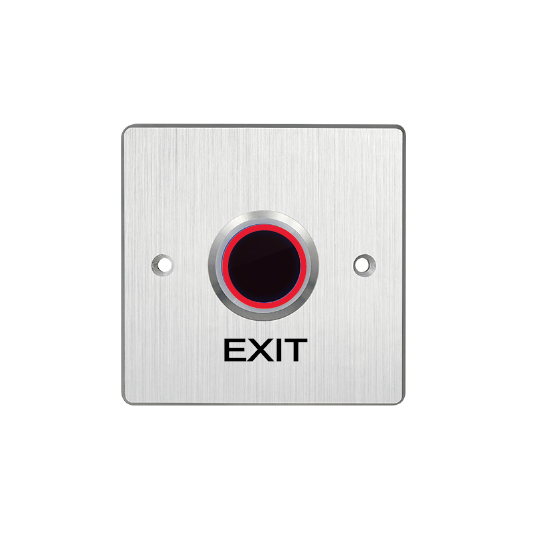

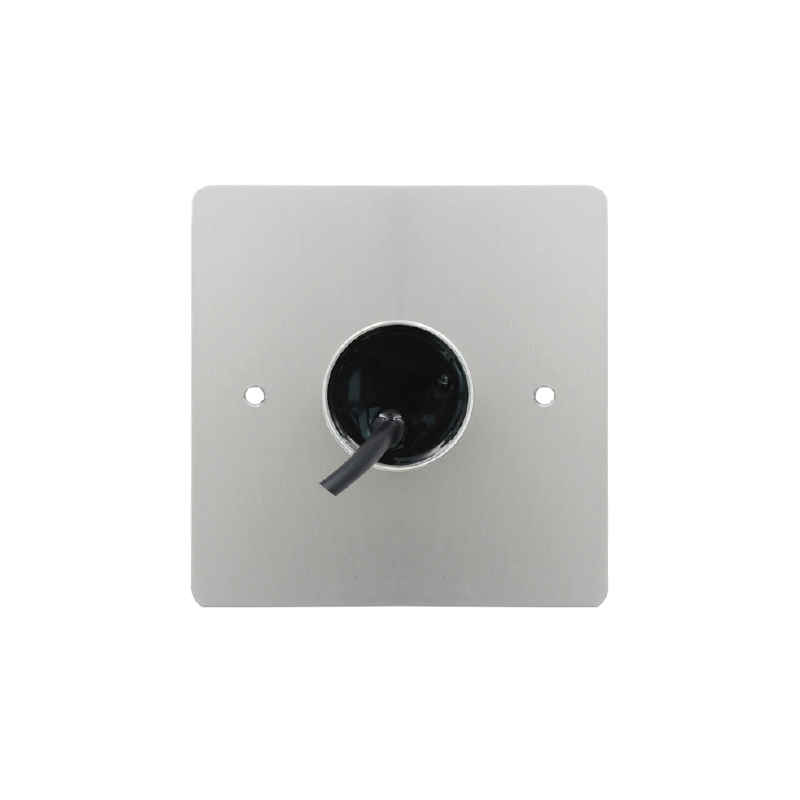

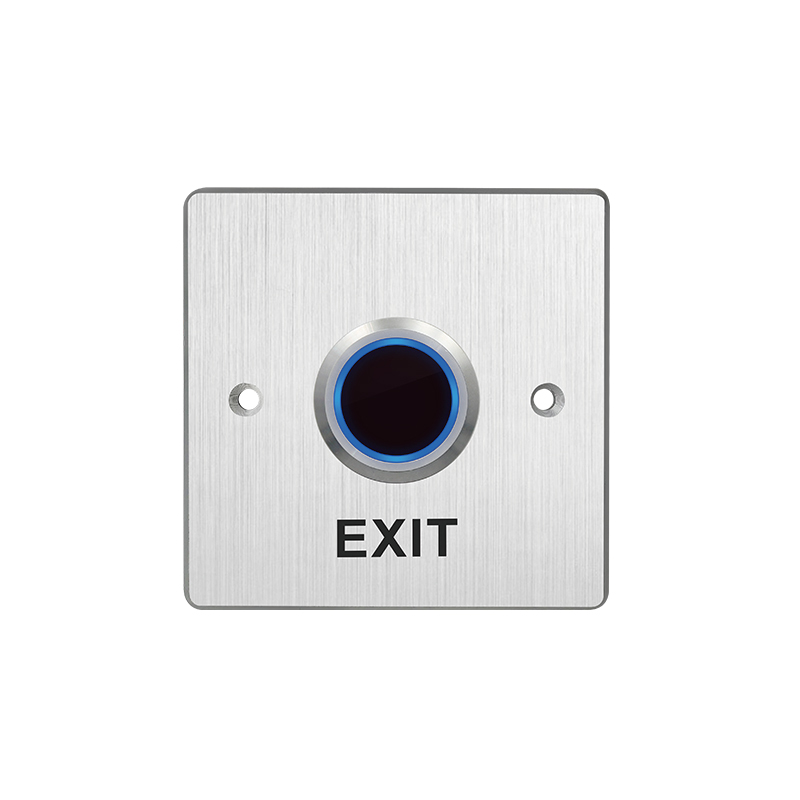

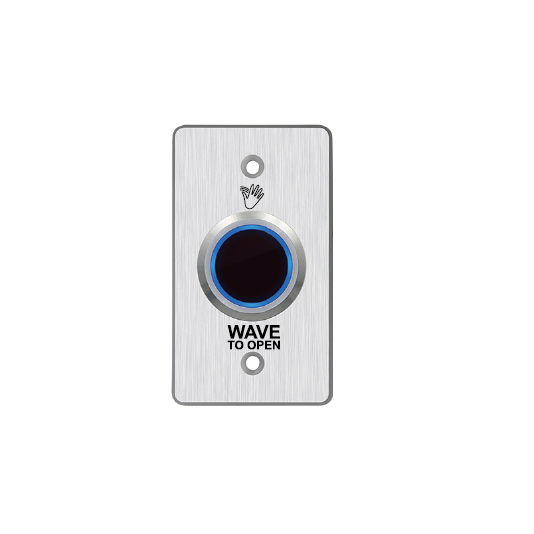

View | Front | Back | Front | Back | ![]() |
Photos | ![]() | ![]() | ![]() | ![]() |
Model | ANT850-32NT | ANT850-32NT | ANT886-32NT | ANT886-32NT | ANT886-32NT |
Pttern | Button design | Panel design | Button design | LED colour | Russian |
Photos | ![]() | ![]() | ![]() | ![]() | ![]() |
![]() |
