Stainless Steel Switch Button Push To Exit Button With Big Contact Area

    Buy cheap Stainless Steel Switch Button Push To Exit Button With Big Contact Area from wholesalers

    Buy cheap Stainless Steel Switch Button Push To Exit Button With Big Contact Area from wholesalers
    • Buy cheap Stainless Steel Switch Button Push To Exit Button With Big Contact Area from wholesalers

    Stainless Steel Switch Button Push To Exit Button With Big Contact Area

    Ask Lasest Price
    Brand Name : CAMEL
    Model Number : S886D2S
    Certification : CE RoHS
    Price : reasonable factory-direct prices
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 40,000pcs per month
    Delivery Time : within 5 working days
    • Product Details
    • Company Profile

    Stainless Steel Switch Button Push To Exit Button With Big Contact Area


    Stainless Steel Switch Button Push To Exit Button with big contact area

    Products Key Words


    push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control


    Technical Parameter


    Parameter​Description
    Size86*86*25mm
    Standard StructureStainless steel, stainless steel Button
    Panel MaterialStainless steel Panel, Sandblast Finished
    Current3A @36V DC Max.
    Output ContactNO/NC/COM
    Mechanical Life100,000 tested
    Operating Temperature-20‐ +55℃ (14-131F)
    Operating Humidity0-95% (non-condensing)
    Weight0.15kg
    Package100pcs/50*45*24cm/11kg/ctn

    Product Introduction


    S850D2S / S886D2S / S870D2S / S840D2S series button with big contact area is casted by stainless steel . It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years come. ANSI size is hot sell items in American countries as well as other countries at this size.


    S886D2S series push to exit button is momentary SPDT with 3 cables included for NO (Normal Open), NC (Normal Close) and COM (Common),


    Products Key Words


    push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control


    Features


    1, EUROPEAN size 86*86mm

    2, Momentary SPDT

    3. Flat Stainless steel button with Diameter 20.8mm super contact area

    4, Aluminum Alloy Faceplate, elegant design with safety handle

    5, PRESS TO EXIT sign or Hand/Gate Symbol, different facelates to meet different requirements

    6, CE RoHS Certification.

    7, 3 years warranty, we have confidence about our products.

    8.M86 Backbox is available

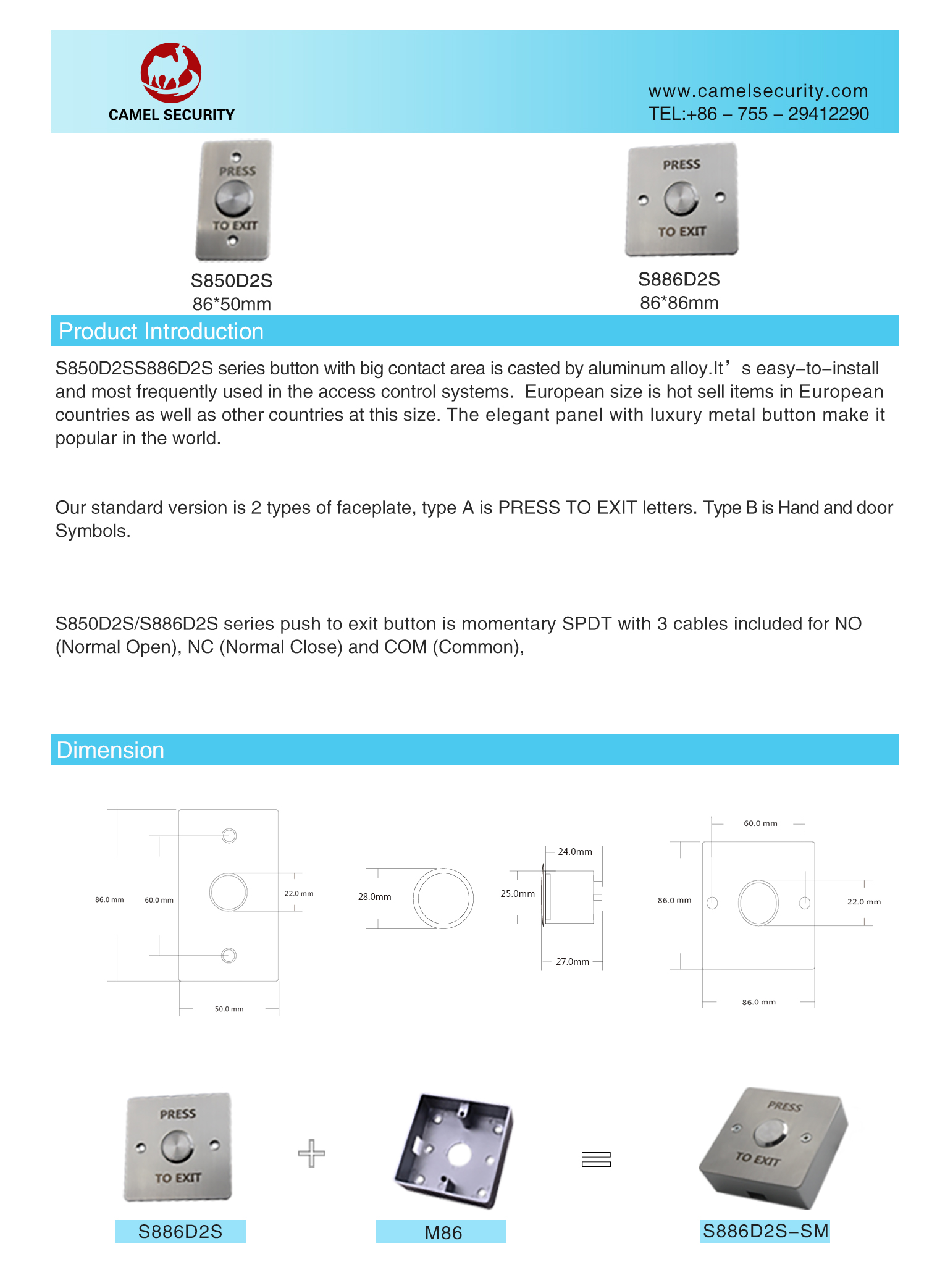

    Details Introduction Photos



    Quality Stainless Steel Switch Button Push To Exit Button With Big Contact Area for sale
