115*40 Panel Momentary Key Switch Red LED Standby Green LED Active
for Indication
Product Introduction
Exit Button Specialists Camel Security offer a wide range of market
leading access control door exit buttons and door release buttons.
Our products covers push to exit button, press to exit button,
Infrared sensor No touch exit button, touch sensor exit and
keyswitch.
Keyswitch is very common and frequently used in access control
system, it is often used in public, banks, small, medium and large
sized enterprised, department stores and residences etc.
S40KLC Series product is American size, also called sqaure size
Keyswitch with dual light indicator, we also provide elegant style
square size backbox M40 for surface mount. It is screw terminal for
easy installation and nice looking. And there are different sizes
faceplates for optional, such as 86*86mm, 86*50mm and 115*70mm.
Please choose any size you prefer and send to us. Your order will
meet our great care and support.
Technical Parameter
| Size | 115W*40L*25H (mm) |
| Material | 304 Stainless Steel Faceplate, wire drawing finished |
| Current | 3A @36V DC Max. |
| Mechanical Life | 100,000 times tested |
| Output Contacts | N.O/N.C/COM |
| Working Temperature | 10‐55℃ (14-131F) |
| Working Humidity | 0-95% (non-condensing) |
| Standard Package | 100pcs/51*43*33cm/13kg/ctn |
Key Features
1, OEM your sign is welcomed.
2, Anti- Vandal Switch for protection.
3, Standby: Red Light Indicator; Active: Green Light Indicator
4. 115*40mm square size is good for South & North American and other
countries at this size.
5. strong and durable 304 stainless steel button and panel, laser
printing for years last
6, color cables included, it save your time and energy when
installation
7, M40 Backbox is optional for surface mount.
8, screw type terminal installation for easy use
9, 3 years warranty, we have confidence in our products quality
10, carry CE RoHS Certification, CE at 2014/30/EU and RoHS at
2011/65/EU
Products name
Egress device, Momentary Key Switch, Exit Button with emergency key
switch, Key Switch with light, Anti-vandal Key Switch with light
indicator and LED Indicator Flexible Key Switch.

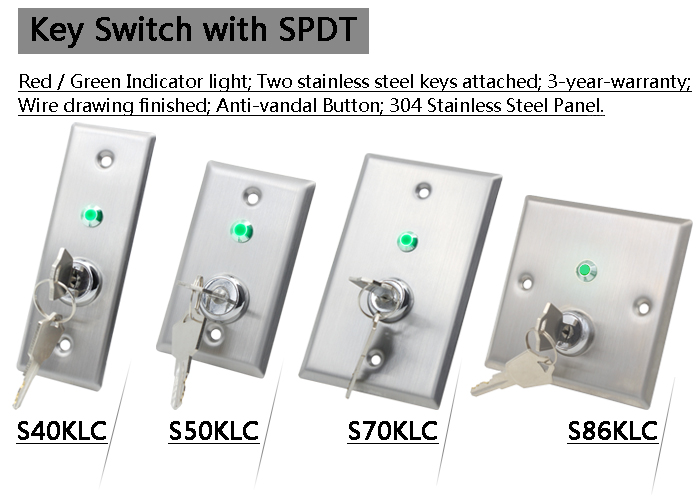

Photo of S40KLC
