Stainless Steel Door Release Push to Exit Button with LED Indication

    Buy cheap Stainless Steel Door Release Push to Exit Button with LED Indication from wholesalers

    Buy cheap Stainless Steel Door Release Push to Exit Button with LED Indication from wholesalers
    • Buy cheap Stainless Steel Door Release Push to Exit Button with LED Indication from wholesalers

    Stainless Steel Door Release Push to Exit Button with LED Indication

    Ask Lasest Price
    Brand Name : CAMEL
    Model Number : S87022LG
    Certification : CE RoHS
    Price : factory-direct prices
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 40,000pcs per month
    Delivery Time : within 5 working days
    • Product Details
    • Company Profile

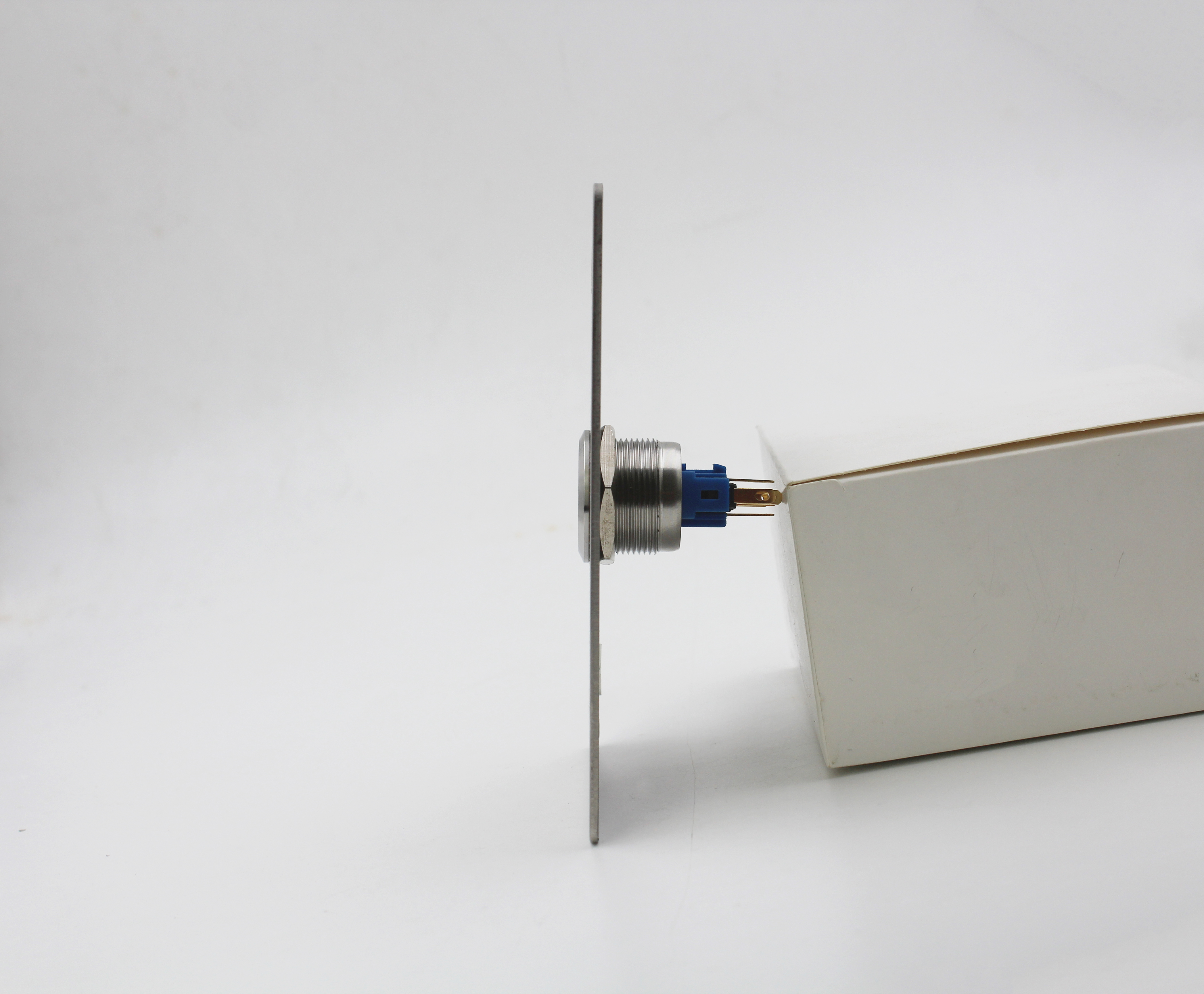

    Stainless Steel Door Release Push to Exit Button with LED Indication


    Stainless Steel Press to Exit Button with LED Indication


    Product Introduction



    S87022LGseries button is casted by light but strong stainless steel material with wiring finished and PRESS To EXIT Sign faceplate. Together with NO(normal open) NC (normal close) LED light switch to realize its excellent performance. The LED color can be green or blue, other colors available if required. Push to Exit Button with LED light is very common for luxury classic places/offices. Also it can be clearly seen at dark night. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years come. American size is hot sell items in American countries as well as other countries at this size.


    22L LED light switch is flat design with bigger press / contact area for better use and looks better. The contact area diameter is 1.8mm.


    The 1.8mm 304 stainless steel faceplate with excellent casting makes it elegant looking and long time usage.


    Technical Parameter


    Parameter​Description

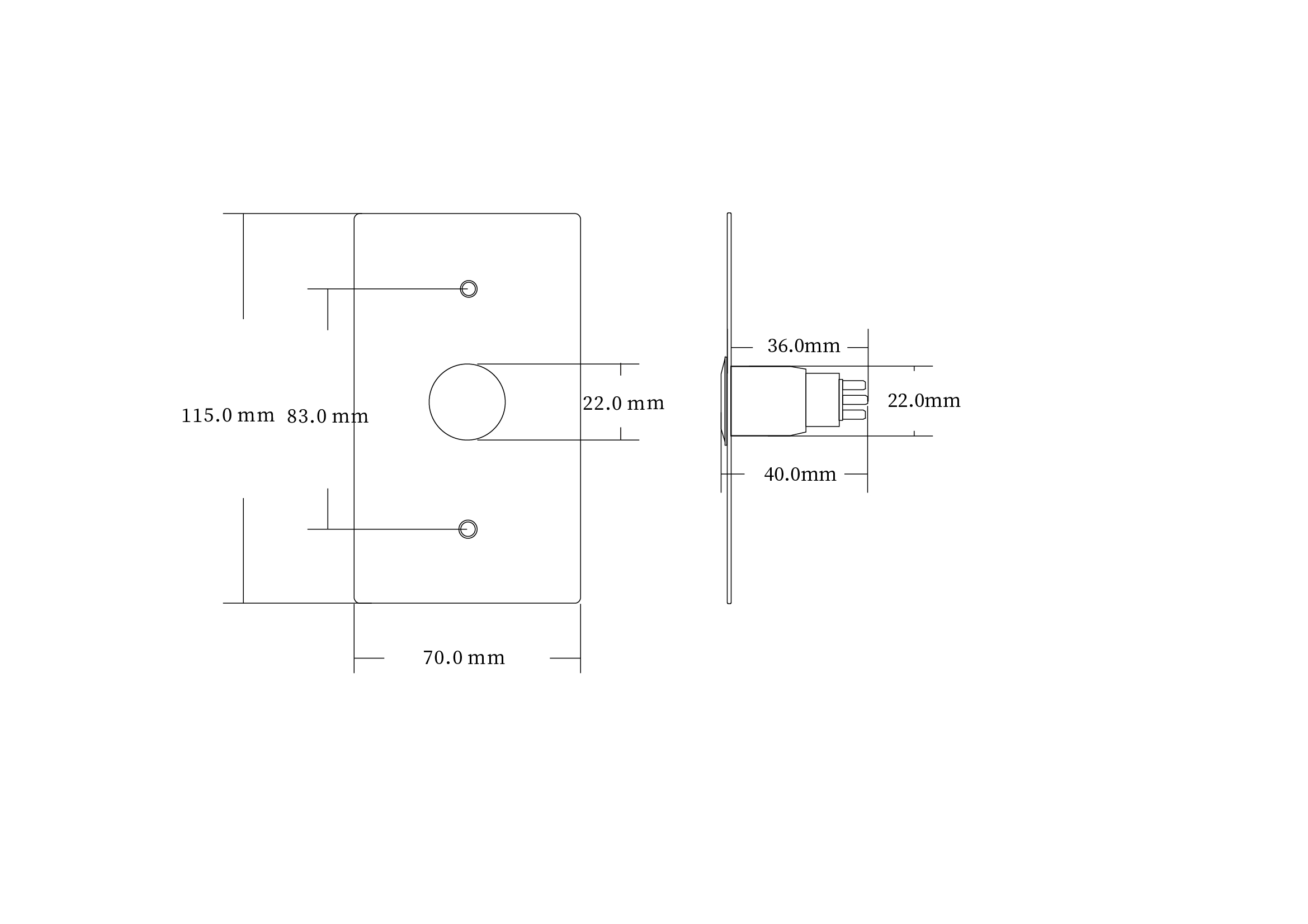

    Size115*70*36mm
    Standard StructureStainless Steel Panel, Metal Button
    Panel Material1.8mm 304 Stainless Steel
    Current3A @36V DC Max.
    Output ContactNO/NC/COM/LED
    Mechanical Life100,000 tested
    Operating Temperature

    -20~+55℃ (14-131F)

    Operating Humidity0-95% (non-condensing)
    Weight0.128kg
    Package100pcs/56*37*47cm/ctn

    Products Key Words


    exit button with LED light, push button with light, push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control
